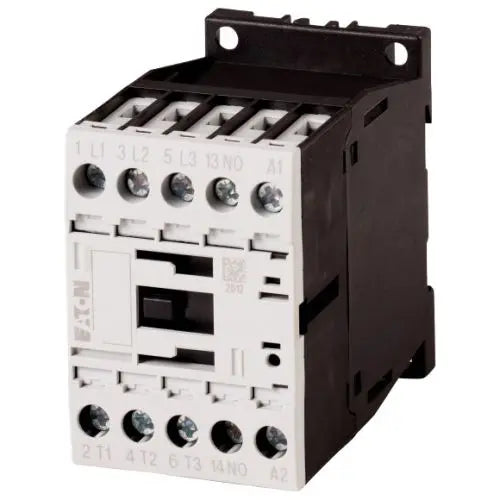

EATON DILM DILM9-10(24VDC) Magneetschakelaar | 276705

EATON DILM DILM9-10(24VDC) Magneetschakelaar | 276705

Eaton Industries DILM magneetschakelaar, (bxhxd) 45x68x75mm, type stuurspanning DC, aansluitwijze hoofdstroomcircuit schroefaansluiting, 3 hoofdcontacten als maakco, nom. vermogen NEMA 3.7kW, 1 hulpcontacten als maakcon, nom. stuurspanning bij DC 24V, bedrijfsspanning bij AC 50 Hz 24 - 690V,

Type

DILM9-10(230V50HZ,240V60HZ)

Aantal polen

3-polig

Contactsoort

3x NO

Type hulpcontact

1x NO

Nominale spanning

230V/AC

Schakelspanning (max.)

400V/AC

Belastingsstroom

9A

Vermogen

4kW

Aansluiting

Schroefklem

Mechanische levensduur

10 x 10⁶

Beschermingsklasse

IP20

Min. temperatuur

-25°C

Max. temperatuur

+60°C

Inhoud

1stuk(s)

Width

45mm

Height

68mm

Depth

75mm

Suitable for distribution board

FALSE

Rated operation power at AC-3, 400 V

4kW

Number of normally open contacts as main contact

3

Number of normally closed contacts as main contact

0

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

0

Rated operation current Ie at AC-3, 400 V

9A

Rated operation current Ie at AC-1, 400 V

22A

Rated control supply voltage AC 50 Hz

230-230V

Rated control supply voltage AC 60 Hz

240-240V

Rated control supply voltage DC

0-0V

Type of electrical connection of main circuit

Screw connection

Operating voltage AC 50 Hz

24-690V

Operating voltage AC 60 Hz

24-690V

Voltage type for actuating

AC

Rated operation current Ie at AC-4, 400 V

6A

Rated operation power at AC-4, 400 V

2.5kW

Rated operation power NEMA

3.7kW

Soortnaam

Contactor
